https://www.synology.com/en-us/products/RS2416+
Option 2. HP DL380 with 12 x 8TB SATA disks:
https://marketplace.hpe.com/pdp?catId=15351&reqCatId=3328412&catlevelmulti=15351_3328412_241475_7271241&prodNum=867449-S01&country=US&locale=en&resellers=PCM;Insight
http://www.provantage.com/hpe-867449-s01~7HPE90FN.htm
Note: Can use 15 LFF disks with kit: 768856-B21
- RHEL 7.5/Centos 7.5 with Deduplication (inline)
- Windows 2012/2016 with Storage Spaces Deduplication (post-process)
Option 3: Supermicro Storage Server with 36 SATA disk bays:
https://www.thinkmate.com/system/stx-nl-xe36-24s1-10g
 | |
| Configured Price: $19,874.00 | |
| Selection Summary | |
| Processor |
2 x Intel® Xeon® Bronze 3104 Processor 6-core 1.70GHz 8.25MB Cache (85W)
|
| Motherboard |
Intel® C624 Chipset - 10x SATA3 - 2x M.2 - Dual Intel® 10-Gigabit Ethernet (RJ45) - IPMI 2.0 with LAN
|
| Memory |
12 x 4GB PC4-19200 2400MHz DDR4 ECC Registered DIMM
|
| Chassis |
Thinkmate® STX-4336 4U Chassis - 36x Hot-Swap 3.5" SATA/SAS3 - 12Gb/s SAS Single Expander - 1280W Redundant Power
|
| Storage Drive |
36 x 10TB SATA 6.0Gb/s 7200RPM - 3.5" - Hitachi Ultrastar™ He10 (512e)
|
| Optical Drive |
No Optical Drive Support
|
| Controller Card |
LSI MegaRAID 9361-8i SAS 12Gb/s PCIe 3.0 8-Port Controller with 1GB Cache
|
| Battery Backup |
CacheVault Flash Cache Protection Module for 9361 Series (LSICVM02)
|
| Operating System |
No Operating System
|
| Warranty |
3 Year Advanced Parts Replacement Warranty
|
| Tech Specs | |
| Processor | |
| Product Line |
Xeon Scalable
|
| Socket |
LGA3647
|
| Clock Speed |
1.70 GHz
|
| Cores/Threads |
6C / 6T
|
| Intel Virtualization Technology |
Yes
|
| Intel Hyper-Threading |
No
|
| Wattage |
85W
|
| Motherboard | |
| North Bridge |
Intel C624
|
| Memory Technology |
DDR4 ECC Registered
|
| Memory Slots |
16x 288-pin DIMM sockets
|
| Expansion Slots |
3x PCI-E 3.0 x16
4x PCI-E 3.0 x8 |
| Graphics Controller |
Aspeed AST2500 BMC
|
| Network Controller(s) |
Dual 10GBase-T LAN ports via Intel® X557
|
| On-Board Interfaces |
SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| USB 3.0 Ports |
7x USB 3.0 (4 rear + 2 front header+ 1 type A)
|
| VGA Ports |
1x VGA port
|
| Memory | |
| Technology |
DDR4
|
| Type |
288-pin DIMM
|
| Capacity |
12 x 4 GB
|
| Speed |
2400 MHz
|
| Error Checking |
ECC
|
| Signal Processing |
Registered
|
| Chassis | |
| Product Type |
4U Rackmount
|
| Color |
Black
|
| Watts |
1280W
|
| External Drive Bays |
36x (24 front + 12 rear) 3.5" Hot-swap HDD bays
|
| Cooling Fans |
7x 8cm (7000 RPM) hot-swap PWM cooling fan
|
| Dimensions (WxHxD) |
17.2" (437mm) x 7" (178mm) x 27.5" (699mm)
|
| Storage Drive | |
| Storage Capacity |
36 x 10.0TB
|
| Interface |
6.0Gb/s Serial ATA
|
| Rotational Speed |
7200RPM
|
| Cache |
256MB
|
| Format |
512e
|
| Controller Card | |
| Product Type |
SAS RAID Controller
|
| Data Transfer Rate |
12Gb/s SAS
|
| Internal Ports |
8 Ports
|
| External Ports |
0 Ports
|
| I/O Processor |
LSI SAS3108 (ROC)
|
| Cache Memory |
1GB DDR3
|
| RAID Levels |
0, 1, 5, 6, 10, 50, 60
|
| Max Devices |
128
|
| Quotation Date: February 6th, 2018, 05:56 PM EST. All prices subject to change. | |
Configured Price: $19,874.00
| |
- RHEL 7.5/Centos 7.5 with Deduplication
- Windows 2012/2016 with Storage Spaces Deduplication

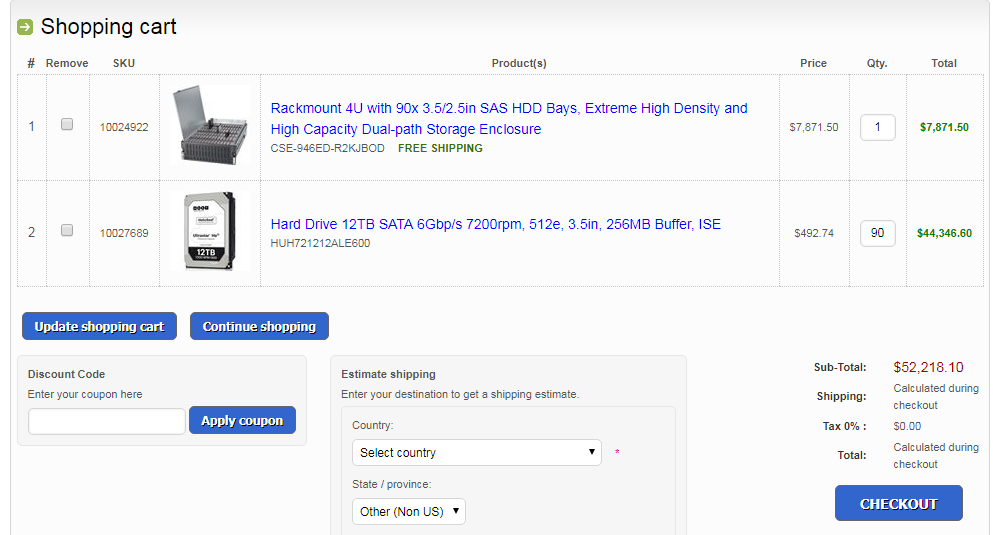

Option 4 - Supermicro Storage Server with 90 SATA disk bays:
http://www.wiredzone.com/supermicro-storage-servers-4u-barebone-dual-processor-ssg-6048r-e1cr90l-10025907
864TB usable for US$52,218. Cost is $0.0013/GB/month over 5 years. Can be used with:
- RHEL 7.5/Centos 7.5 with Deduplication
- Windows 2012/2016 with Storage Spaces Deduplication

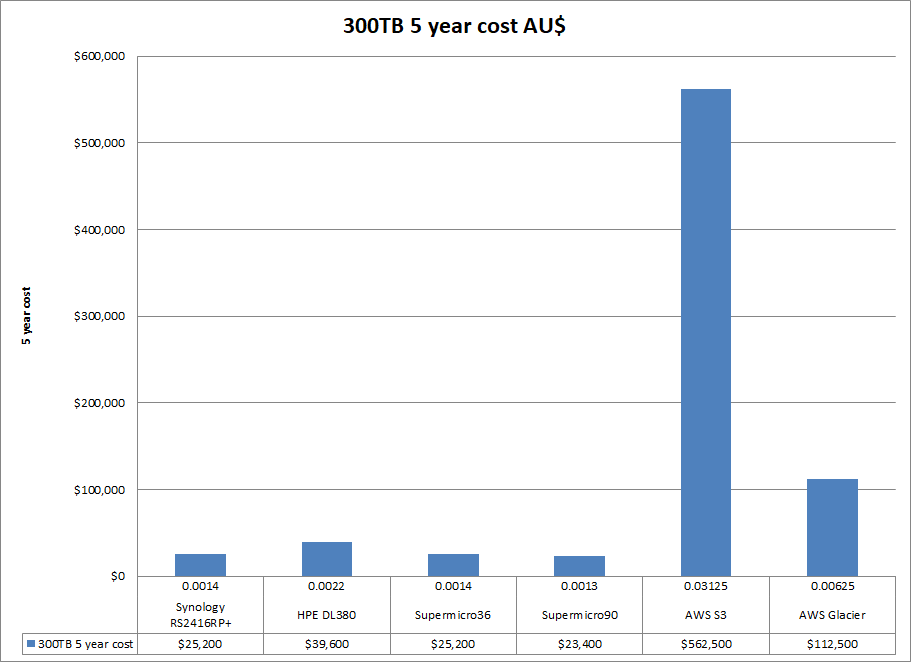

Cost Comparison:
RHEL VDO Deduplication:
Red Hat purchased leading dedup company Permabit in July 2017 and "Red Hat plans to open source Permabit’s technology". This dedupe technology is now part of RHEL 7.5:
https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/7/html/storage_administration_guide/vdo
http://permabit.com/resources/permabit-albireo-vdo-for-data-centers/
Red Hat purchased leading dedup company Permabit in July 2017 and "Red Hat plans to open source Permabit’s technology". This dedupe technology is now part of RHEL 7.5:
https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/7/html/storage_administration_guide/vdo
http://permabit.com/resources/permabit-albireo-vdo-for-data-centers/
• 4KB inline deduplication for maximum efficiency.
• Deduplication-aware compression for maximum performance
• Optimized flash and hard disk drive (HDD) storage in hybrid cloud environments
• Thin provisioning for inline zero elimination and oversubscription at 4KB granularity
• Low performance impact—typically less than 20%.
• Performance: 650K 4 KB IOPS/server
• Scalability: 4 PB logical/256 TB physical per instance with 4 pools/server

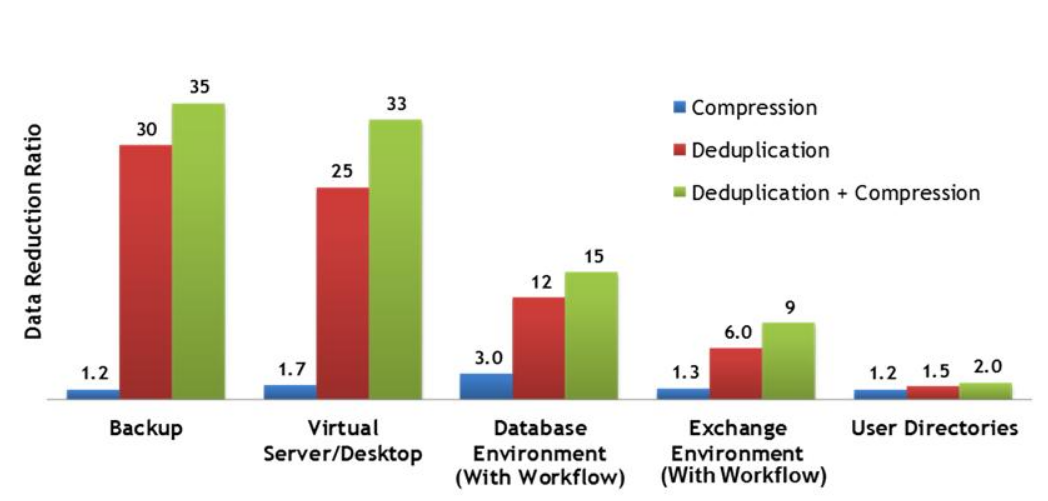

• Efficiency: 2X-35X data reduction
• RAM Footprint: 370 MB +280 MB/TB of storage
• Performance: 650K 4 KB IOPS/server
• Scalability: 4 PB logical/256 TB physical per instance with 4 pools/server
• Efficiency: 2X-35X data reduction
• RAM Footprint: 370 MB +280 MB/TB of storage
S3 compatible server with open source minio:
http://blog.zorangagic.com/2018/02/minio-open-source-s3-storage.html
Update 19/2/2018 - Low cost storage WD Easystore 8TB = $159 (It is WD Red):
