Low cost, redundant two node server and storage for
vSphere based private cloud with self service provisioning. Can support up to
50-100 VMs:
Compute
|
Compute: 2 redundant nodes, each with: 20 CPU cores, 256GB, Dual
10GbE, Quad 1GbE, 2 x 300GB SAS drives
|
US$12,107
|
Storage
|
Storage: Highly available with 2 nodes, total of 16 CPU cores,128GB
memory 20 x 1TB drives and 4 x 200GB SSD drives
|
US$14,299
|
VMware
|

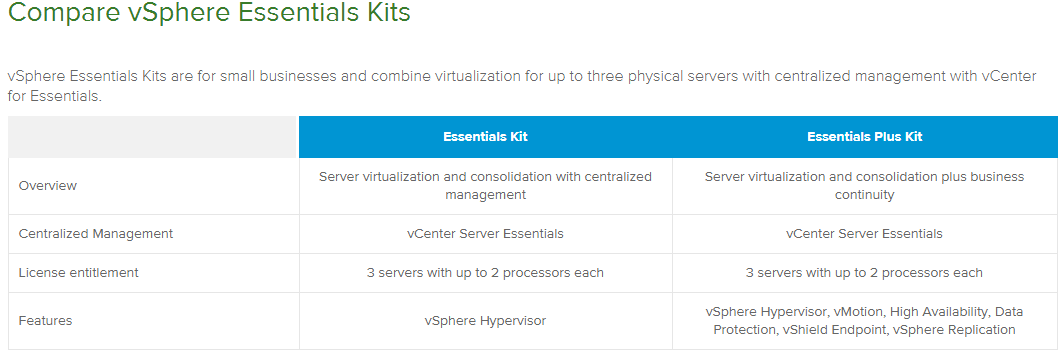

VMware vSphere Essentials Plus: vSphere Hypervisor, vCenter, vMotion,
High Availability, Data Protection, vShield Endpoint, vSphere Replication
|
US$4,495
|
Self Service Portal
|
ManageIQ Cloud Management Platform that provides hybrid cloud
management of virtual infrastructure based on VMware vSphere, Red Hat
Enterprise Virtualization, Microsoft Hyper-V, OpenStack, and Amazon EC2
|
Free
|
Total Cost
|
Hardware cost: $26,406
vSphere: $4,495
|

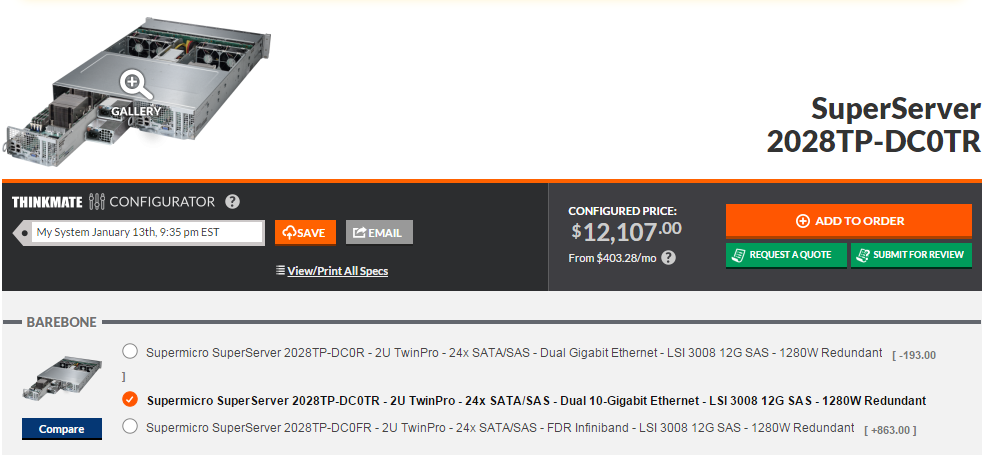

Barebone
|
Supermicro SuperServer 2028TP-DC0TR - 2U TwinPro - 24x
SATA/SAS - Dual 10-Gigabit Ethernet - LSI 3008 12G SAS - 1280W Redundant
|
Processor
|
4 x Ten-Core Intel Xeon Processor E5-2650 v3 2.30GHz
25MB Cache (105W)
|
Memory
|
32 x 8GB PC4-17000 2133MHz DDR4 ECC Registered DIMM
|
Boot Drive
|
No SATA Disk on Module for boot
|
Hard Drive
|
4 x 300GB SAS 2.0 6.0Gb/s 10000RPM - 2.5" -
Hitachi Ultrastar C10K900 (512n)
|
Optical Drive
|
No Optical Drive Support
|
Network Card
|
2 x Intel Ethernet Server Adapter I350-T4V2 Quad Port
(4x RJ-45)
|
Operating System
|
2 x No Operating System
|
Warranty
|
3 Year Depot Warranty (Return for Repair)
|
Storage:http://www.thinkmate.com/
http://blogs.technet.com/b/storageserver/archive/2014/03/07/supermicro-s-new-cluster-in-a-box-solutions-running-windows-storage-server-2012-r2.aspx

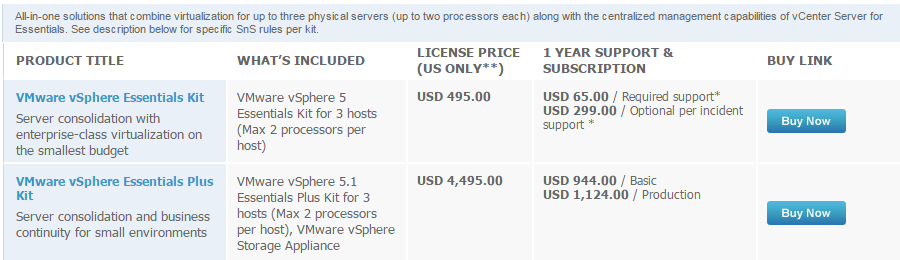

vSphere Pricing: http://www.vmware.com/products/vsphere/pricing.html
Self Service Provisioning: Open Source ManageIQ:
http://blog.zorangagic.com/2015/04/red-hat-cloudforms-manageiq.html
Backup (Optional): http://www.thinkmate.com/system/superstorage-server-5048r-e1cr36l
Diagram: TBD
